DC TIG and MMA welding
Supports DC TIG, DC-Pulse TIG, MMA, and high-speed TIG spot welding processes. The MMA function allows use of various electrode types for field repairs and maintenance applications.
Full-Digital IGBT Inverter Multifunctional DC TIG Welding Machine
MetaTIG DC Series
The Megmeet MetaTIG DC Series delivers precision DC TIG welding with arc stability starting at just 3A, 0.1–3000Hz pulse frequency, and multiple waveforms. Lightweight at 37kg with 100% duty cycle at 400A, it is the reliable workhorse for steel, stainless steel, and alloy welding.
Ultra-low 3A arc start
Arc starts and stabilizes at just 3A, enabling precision welding of thin materials without burn-through or distortion.

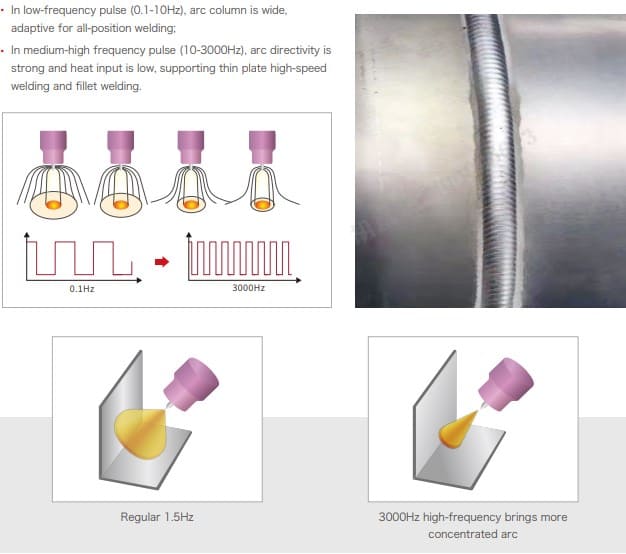

0.1–3000Hz pulse range
Ultra-wide DC pulse frequency range from 0.1 to 3000Hz with 1–99% pulse width adjustment for fine-tuned heat input control on any material.
Lightweight & powerful
Weighing only 37kg with output up to 500A, the MetaTIG DC Series offers exceptional power-to-weight ratio with 91% energy efficiency.
Features & Enhancements
High-frequency and lifting arc start
Dual arc-start modes — high-frequency and lifting arc — ensure reliable starts on all material types while giving operators flexibility based on application requirements.
50 JOB parameter storage
Store up to 50 groups of welding parameters for quick recall, streamlining production changeover and ensuring repeatable quality across shifts and operators.
Specifications & parameters
Rated output current315A
Rated output voltage22.6V
Input capacity12.5KVA / 11.4KW
No-load voltage66V
Duty cycle100% @ 315A
DC TIG range5–315A
Pulse frequency0.1–3000Hz
Efficiency91%
Dimensions647×291×572mm
Weight37kg
