Cloud Platform for Smart Welding Informatization & IoT

SMARC

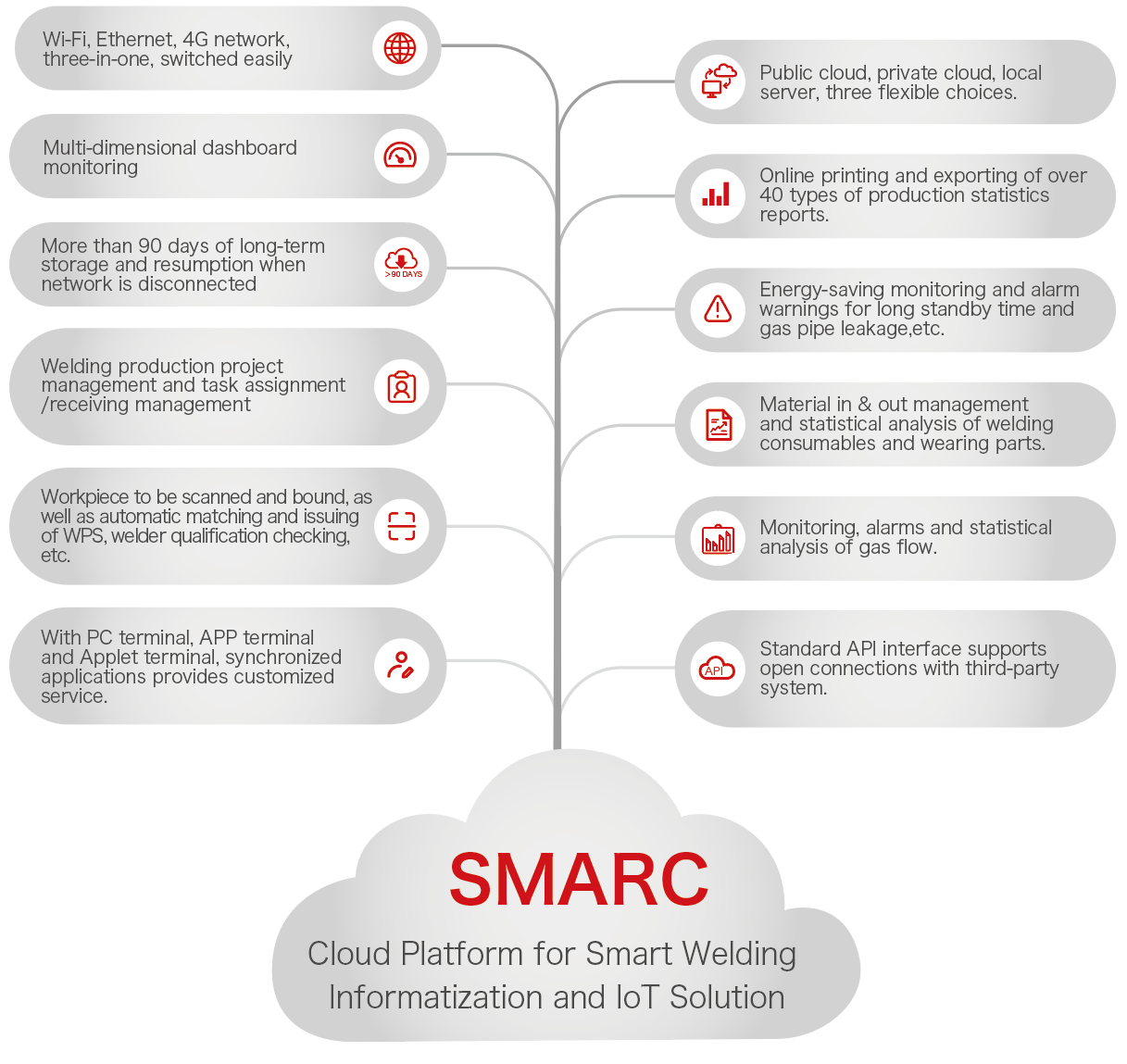

SMARC is Megmeet's cloud-based smart welding platform that connects welding machines, welders, and production data into one unified system. With real-time monitoring, welder management, WPS management, and quality traceability, SMARC transforms welding operations into a data-driven, efficient workflow accessible via PC, mobile app, and WeChat.

SMARC

Real-time monitoring

Monitor welding current, voltage, wire feed speed, and gas flow in real-time across all connected machines from a centralized dashboard.

Welder management

RFID-based welder identity management with skill tracking, certification monitoring, and parameter authority control for quality assurance.

Quality traceability

Full weld data logging for quality traceability — track every weld seam back to the machine, welder, WPS, and exact parameters used.

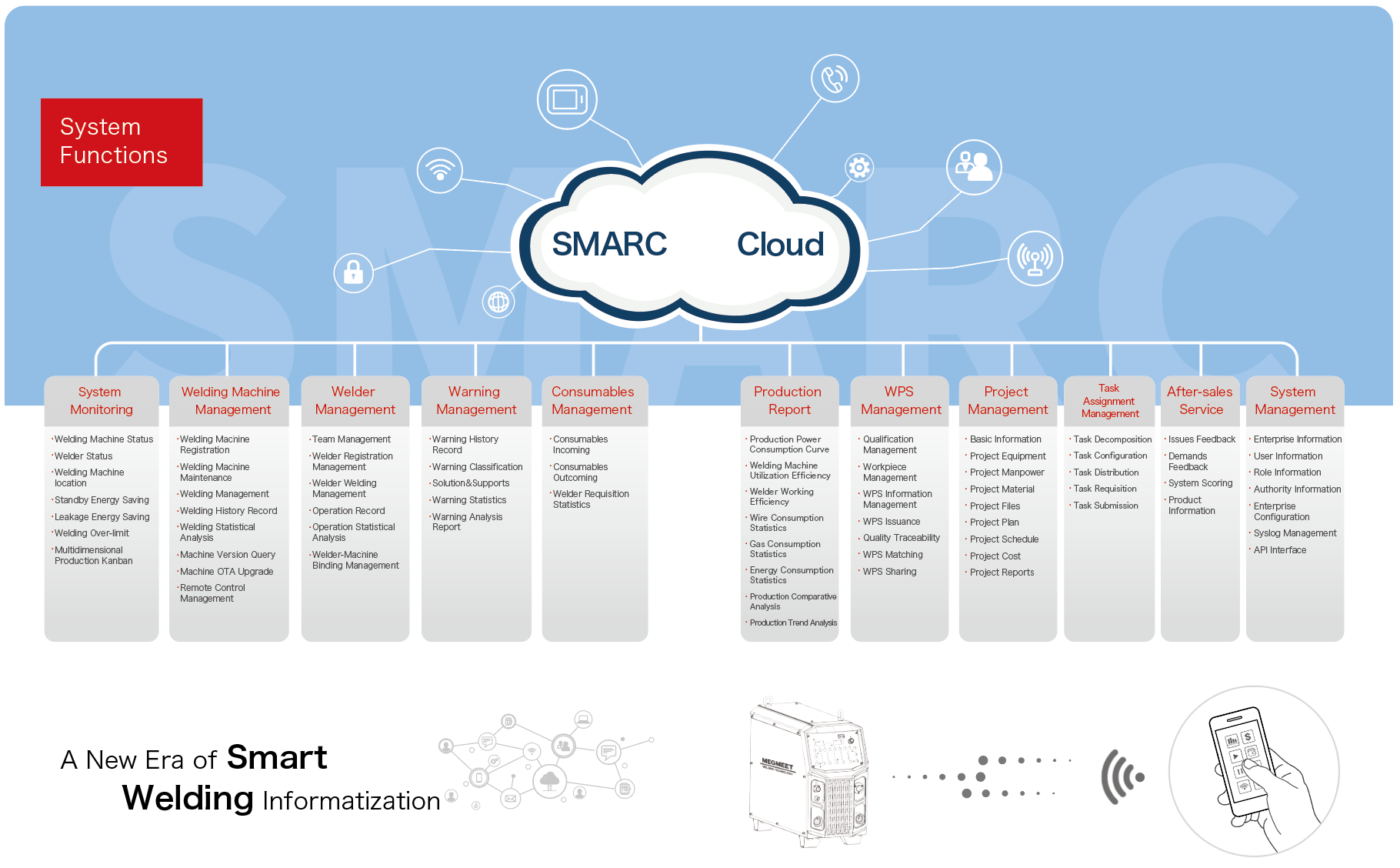

Features & Enhancements

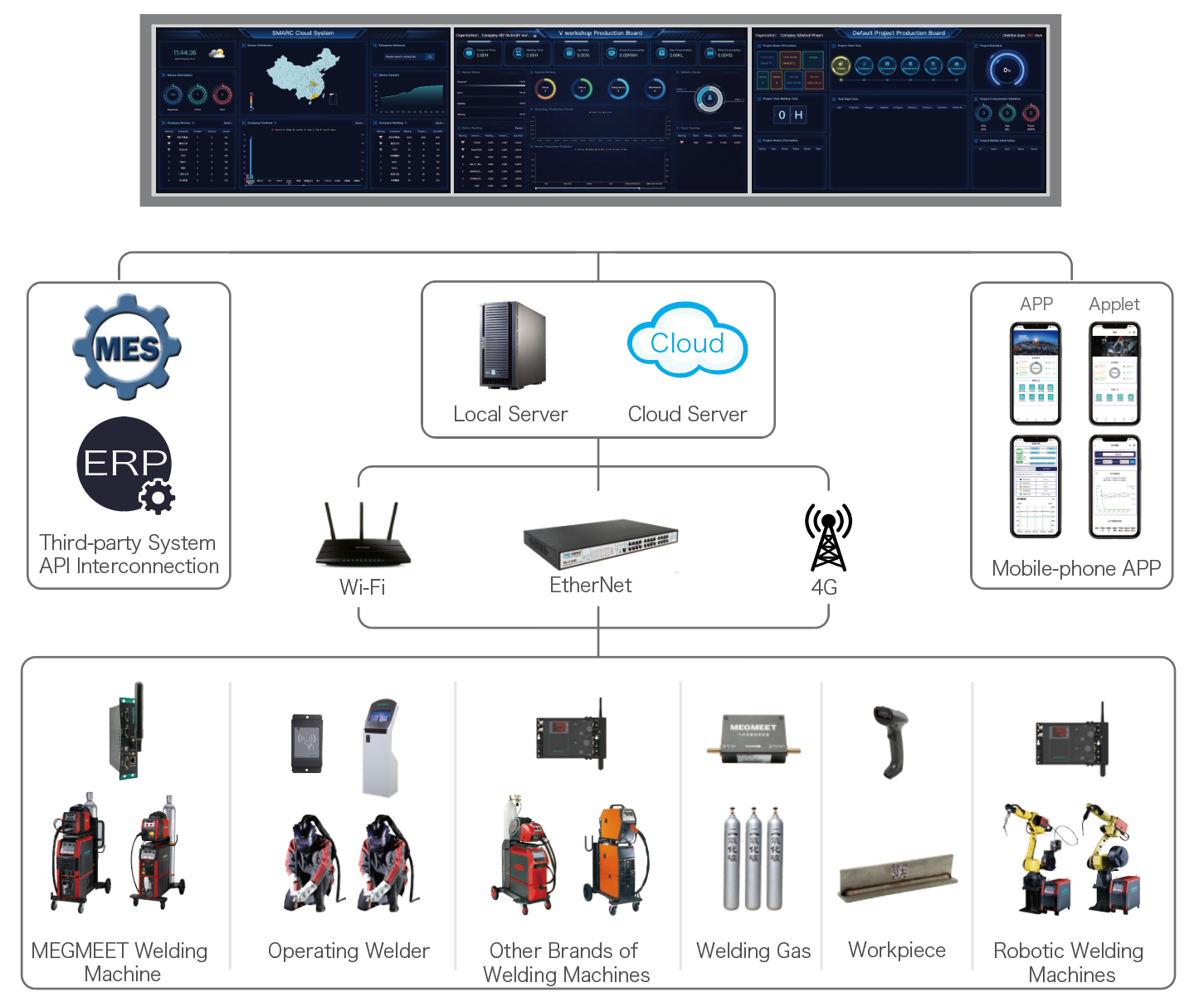

SMARC-2S Intelligent Communication Module

SMARC-2S Intelligent Communication Module

Embedded directly into Megmeet welding machines, the SMARC-2S module (158×92.9×40mm) provides Wi-Fi, Ethernet, and 4G connectivity with CAN, RS232, and RS485 interfaces for seamless data transmission to the cloud platform.

SMARC-2E Universal Data Collector

SMARC-2E Universal Data Collector

For non-Megmeet welding machines, the SMARC-2E data collector connects to any brand via 380VAC input, measuring DC 0–1300A current and 0–120VDC voltage with Wi-Fi, Ethernet, and 4G connectivity.

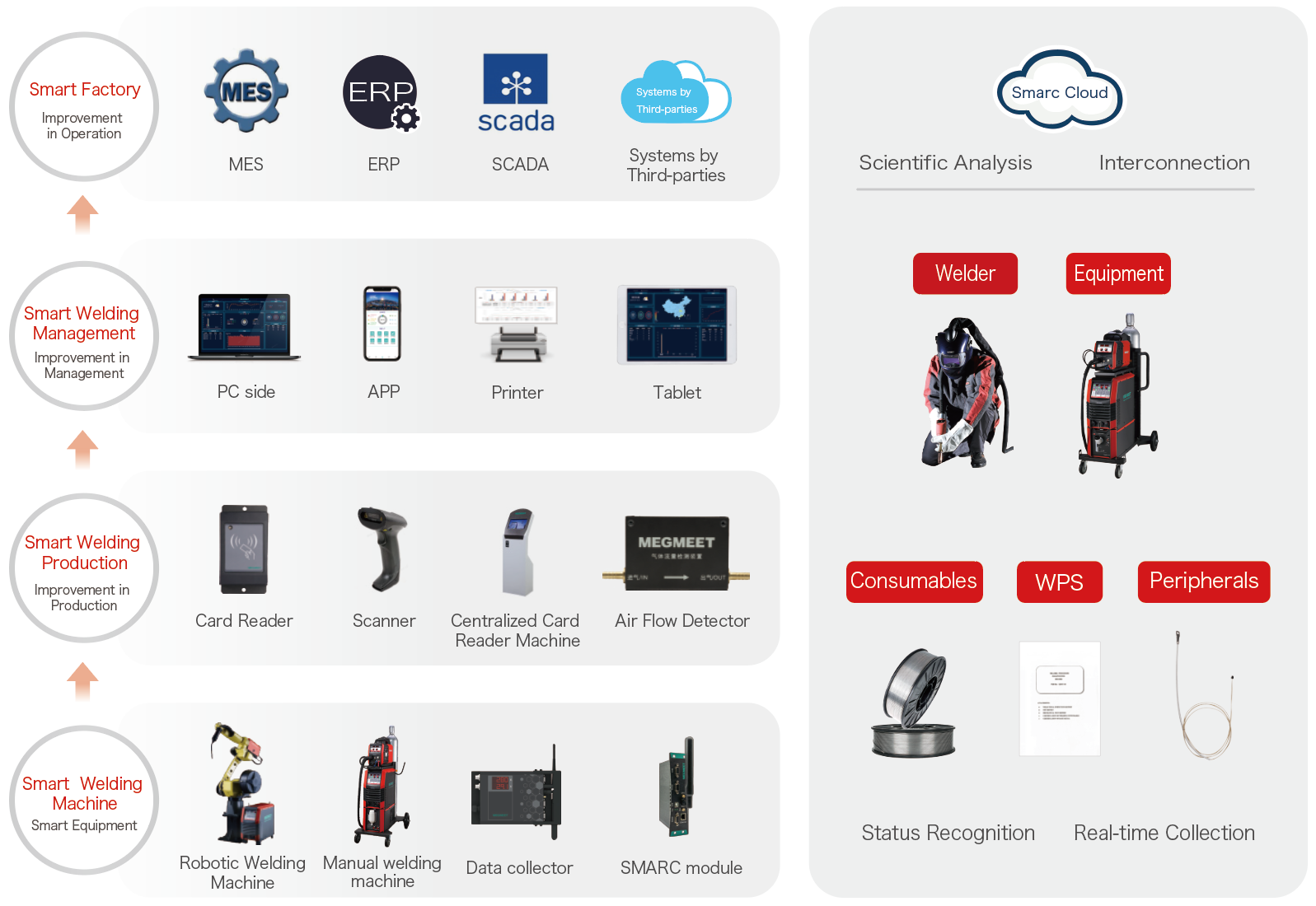

WPS & production management

WPS & production management

Manage Welding Procedure Specifications (WPS) digitally, assign production tasks to welders, track consumables usage, generate production reports, and receive energy-saving alerts — all from one platform.

Gas flow monitoring

Gas flow monitoring

Optional SMARC Gas Flowmeter (thermal mass flow meter, 30 L/min range, RS485 output) provides precise shielding gas monitoring to prevent waste and ensure weld quality.

Specifications & parameters

TypeEmbedded Communication Module
ConnectivityWi-Fi / Ethernet / 4G
InterfacesCAN, RS232, RS485
Input power48VDC
Dimensions158×92.9×40mm
CompatibilityMegmeet welding machines
