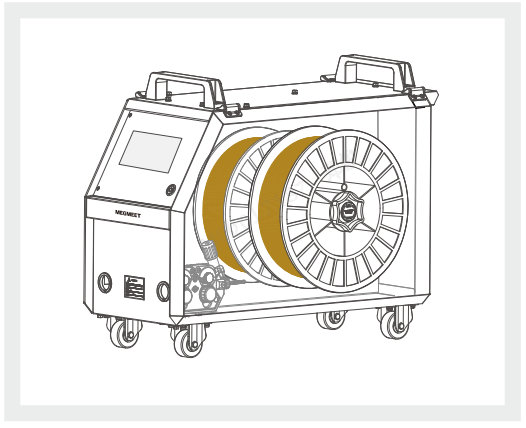

Optional double-wire welding
Optional double-wire welding capability with 1.6–2.5mm wire diameter, achieving weld widths up to 8mm for filling large gaps and increasing deposition rates in heavy plate applications.
Handheld Laser Welding & Cleaning Machine
LUX Series
The Megmeet LUX Series is a versatile handheld laser system available as a four-in-one (welding, cutting, rust removal, weld seam cleaning) or dedicated cleaning machine. With industrial-grade laser generators from 1.5kW to 3kW, it handles carbon steel, stainless steel, aluminum alloy, and more.
Four-in-one capability
Welding, cutting, rust removal, and weld seam cleaning in a single machine. Switch between functions to handle multiple tasks without additional equipment.
Industrial-grade laser
Equipped with industrial-grade laser generators delivering 1.5kW, 2kW, or 3kW output power for reliable performance in demanding production environments.
Wide material range
Welds carbon steel, stainless steel, high-strength steel, galvanized sheet, aluminum alloy, magnesium alloy, and titanium alloy with thicknesses from 0.5mm to 8mm.
Features & Enhancements
Dual-temperature water cooling
Dual-temperature dual-control water cooling system ensures optimal operating temperature for both the laser source and welding head, extending component lifespan and maintaining consistent output quality.

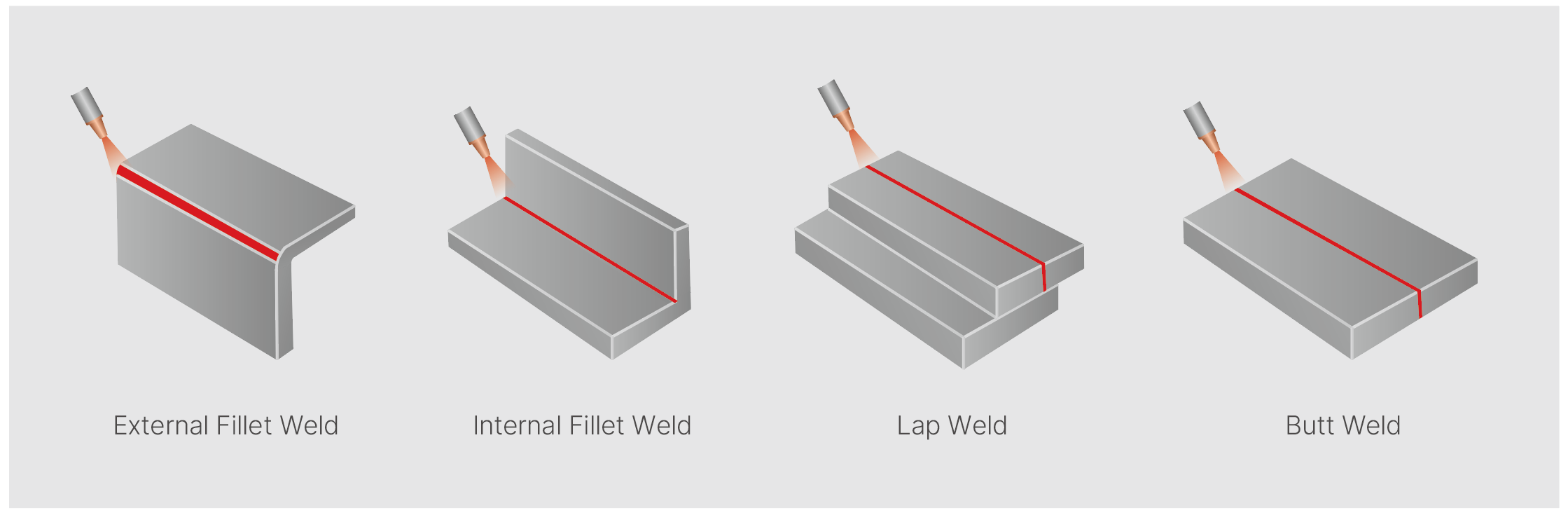

Flexible cable lengths
Standard 10m cable length, extendable to 15m for welding and 20m for cleaning applications, providing excellent reach for large workpieces and on-site operations.
Specifications & parameters
Laser output power1.5kW
Input voltage1-phase 220V 50/60Hz
Input power6kW
Laser wavelength1080±10nm
Welding thickness0.5–4mm
FunctionsWelding, Cutting, Rust Removal, Seam Cleaning
Dimensions915×790×540mm
Weight≤90kg
